HEXAGON (optical software)

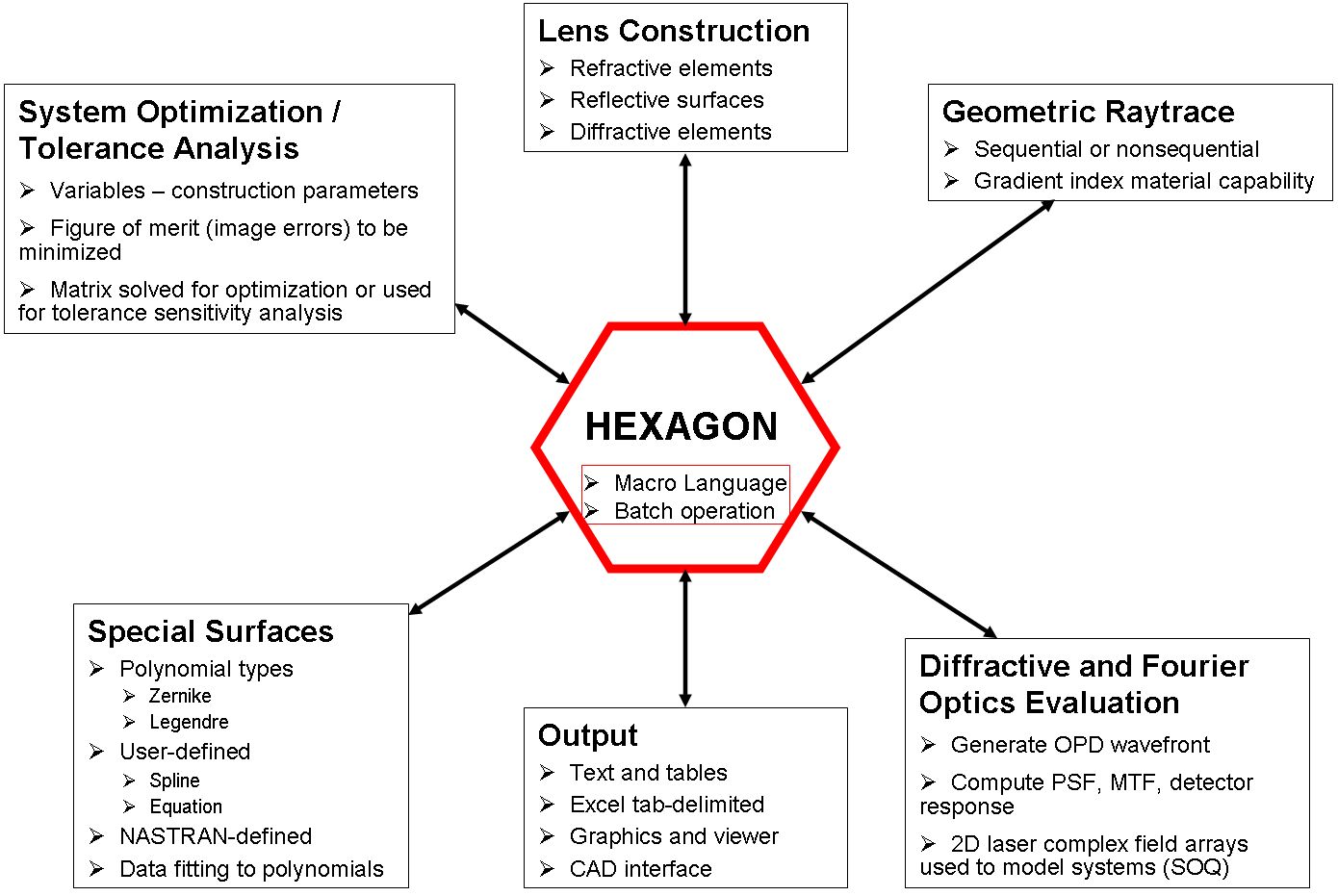

HEXAGON is a proprietary optical engineering software program used to design and analyze a wide variety of optical lens systems. There is an extensive interface capability with other optical design programs (CodeV, Zemax, and OSLO); with mechanical CAD programs (Pro/Engineer, AutoCAD, and I-DEAS); and the structural CAD program NASTRAN. Data can be easily exported to and imported from MATLAB and Excel. Graphical output can be vector graphics, viewed with a built-in viewer or output to WMF format for inclusion in Word or PowerPoint, or bit-map graphics (BMP) image files. The program name derives from: Handy EXpert Application for General-purpose Optical aNalysis. Input is entirely command driven, allowing unattended batch operation; a built-in Macro programming language allows the construction of a simple new 'command' that can execute other commands in a complex manner. Users store their own previously written macros in a macro libraries (a single disk file), and there is an extensive 'permanent' macro library available for all users. The diagram below shows some of the features of the HEXAGON software:

History

In the 1970's Hughes Aircraft Company acquired the software code ACCOS-V and extensively upgraded it while maintaining the command structure: entry consists of a command word (case insensitive) up to six letters long, followed by an optional qualifier word up to eight letters long, then either a text field or a numeric field containing up to five numbers. The new code was named HEXAGON (the beginning acronym meaning Hughes EXecutable) and many optical designers used interactive terminals to run the program on an IBM 4341 mainframe computer. In the 1980's the program expanded its capabilities in optimization, tolerance analysis, and physical optics; this later capability is a subset of HEXAGON named SOQ, for System Optical Quality, that models coherent laser systems using a two-dimensional complex field array. In the 1985 Hughes was sold to General Motors and renamed GMH; in the 1997 GMH was acquired by Raytheon Company. Currently Raytheon has exclusive use of the proprietary software code.
