Acer TravelMate 3020

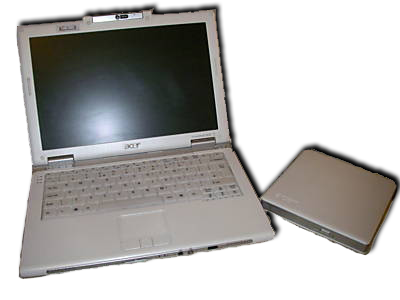

The Acer Travelmate 3020 and 3022WTMi are sub-laptops by Acer Inc., that come with 2 rechargeable batteries (1 standard and 1 high capacity) and an external Firewire DVD-RW drive. They look nearly identical (except for coloring) to their predecessors, TravelMate 3010 and 3012WTMi

Specifications

CPU: Intel Core Duo T2300 (1.66GHz, 2MB L2 Cache), T2400 (1.83GHz, 2MB L2), T2500 (2GHz, 2MB L2), T2600 (2.16GHz, 2MB L2) Chipset: Mobile Intel® 945GM Express Front-side Bus: 667MHz Memory: Dual-Channel DDR2 Memory Capacity: 512MB - 4GB (2 slots)

Graphics/Display

Display: 12.1″ TFT LCD w/CrystalBrite technology (Acer claims 30% more visibility and readability), 200-nit Resolution: 1280×800 WXGA Widescreen: Yes Graphics Chipset: Intel Graphics Media Accelerator GMA 950 Graphics Memory: Up to 128MB (shared) Other: VGA and DVI-D output

Storage

Hard Drive: 2.5″ 80GB, 100GB, 120GB 5400rpm Serial ATA (SATA) Optical: External IEEE 1394 (Firewire) Bus-Powered DVD Super-Multi Dual-Layer DVD Writer

Connectivity

Wireless: Intel® PRO/Wireless 3945 802.11a/b/g Modem: 56K V.90 Ethernet: 10/100/1000-T Gigabit Bluetooth: Bluetooth V2.0+EDR (Enhanced Data Rate) solution - up to 3M signal cover, with Bluetooth phone support Audio I/O: Headphone/Line-Out, Microphone/Line-In USB: 3x USB 2.0 Firewire: 1x IEEE 1394 PC Card: 1x Type II Flash/Memory Card Reader: Secure Digital (SD), xD Picture Card, MultiMediaCard (MMC), MemoryStick (MS), MemoryStick Pro (MSPRO) Other: Fast Infrared (FIR), Optional Acer ezDock, Possibly AcerMedia Bay - Extra HDD or Battery

Software & Warranty

Operating System: Microsoft Windows XP Professional SP2, Windows XP Home SP2, or Windows® XP Media Center Edition 2005 (Rollup 2), Windows Vista capable, can be upgraded (see Acer’s Windows Vista Upgrade Support site for details) Other Software: See software listed at top of page under “Features”

Battery

Options: Lithium-Ion, 3-cell or 6-cell, “Acer QuicCharge” technology - 80% charge capacity in about an hour.

Dimensions

Width: 297.5 mm (11.71 inches) Depth: 210 mm (8.27 inches) Height: 24.5 - 32.4 mm (0.96 - 1.28 inches) Weight: 1.5 kg (3.3lbs) (3-cell battery) - 1.65 kg (3.63lbs) (6-cell battery)
